This article focuses on the technical knowledge analysis of function testing for the RTS series of high - speed multi - layer PCB/PCBA products. These products have gained significant attention in the electronics industry due to their innovative design and high - performance features.

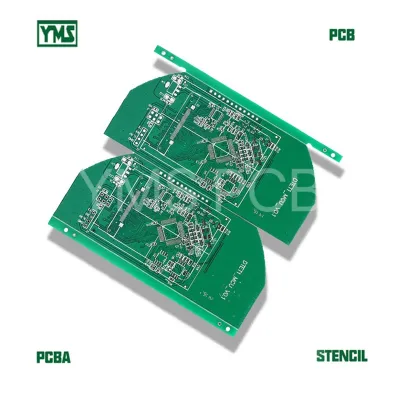

The RTS series adopts an innovative 8 - layer design and high - quality FR - 4 TG170 high - flame - retardant materials. This combination plays a crucial role in achieving excellent electronic signal transmission. Compared with traditional PCB/PCBA products, the innovative 8 - layer design can effectively reduce signal interference and crosstalk. The high - flame - retardant materials not only enhance the safety of the products but also ensure stable performance under harsh environmental conditions.
To meet the high - precision interconnection requirements, the RTS series has precise specifications. The products typically have a size of 100mm x 150mm, with a thickness of 1.6mm and a copper thickness of 35μm. These specifications are carefully designed to ensure reliable electrical performance and mechanical stability. The following table shows a comparison of the key specifications of the RTS series with some common products in the market:
| Specifications | RTS Series | Common Products |
|---|---|---|
| Size | 100mm x 150mm | 80mm x 120mm |
| Thickness | 1.6mm | 1.2mm |
| Copper Thickness | 35μm | 25μm |
The RTS series uses chemical gold plating surface treatment technology. This technology significantly improves the stability and durability of electrical connections. The gold plating layer provides excellent corrosion resistance and conductivity, which can effectively prevent oxidation and ensure long - term stable operation of the products.
All RTS series products are certified according to the IPC - II standard. This certification is a guarantee of product quality. It ensures that the products meet the high - quality requirements of the industry, providing customers with reliable and stable products.
The one - stop service of the RTS series includes in - depth product function testing technology. This involves SMT (Surface Mount Technology) and DIP (Dual In - line Package) component soldering. The SMT process can achieve high - speed and high - precision component mounting, while the DIP process ensures the reliability of through - hole components. The strict testing process after soldering ensures that each product meets the specified performance requirements.
As an additional benefit, we offer a free STENCIL for customers. This not only saves costs for customers but also simplifies the production process, making the one - stop service more convenient.
For specific customers, we provide high - speed pick - and - place machine assembly services. These high - speed machines can achieve an assembly speed of up to 30,000 components per hour, significantly improving production efficiency.
The RTS series has a strong global delivery capability. We have successfully delivered products to customers in over 50 countries and regions around the world. For example, in Europe, we have provided high - quality products and services to many well - known electronics companies, which have highly recognized our products.
In conclusion, the RTS series of high - speed multi - layer PCB/PCBA products offer a comprehensive solution with excellent performance, high - quality assurance, and convenient one - stop service. If you are looking for reliable PCB/PCBA products, please contact us now to experience our high - quality products and services!
